Pneumatic Air Cylinder
- Double Acting - 40mm Bore x 700mm Stroke - Pull Rod Type - SC
Product Video
General Description

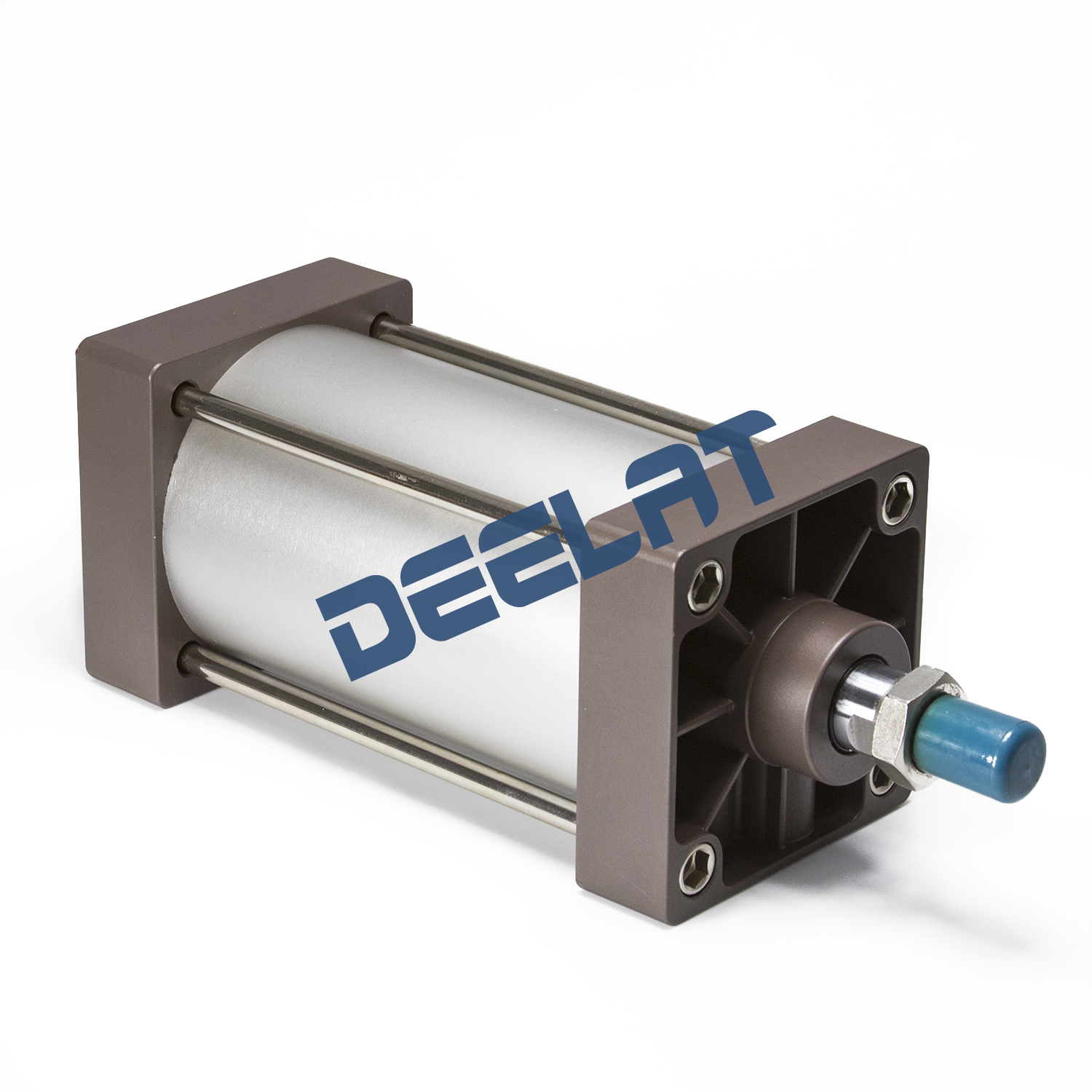

Pneumatic Air Cylinder – Double Acting – 40mm Bore x 700mm Stroke – Pull Rod Type – SC
This standard double action SC air piston is a pull rod type. The bore is 40mm and the stroke is 700mm. It offers an adjustable buffer and is made from the highest professional-grade materials.
Function
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting pistons have two separate ports to extend and retract the piston.
Applications
Air pistons are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications.
Technical Details
| Certifications: | ISO |
|---|---|
| Size: | 84.2x5x5 cm |
| Motion Pattern: | Double Action |
| Working Medium: | Air |
| Operating Voltage Range: | 1.0-9.0 V |
| Ensured Pressure Resistance: | 13.5kgf/cm |
| Operating temperature Range: | -5 - 70°C |
| Operating Speed Range: | 30- 800mm/s |
| Buffer Type: | Adjustable Buffer |
| Buffer Stroke: | 24 |
| Port Size: | G1/4" |
| Stroke Size: | 700 mm |
| Bore size: | 40 mm |
| Material: | Aluminum Alloy |
| Max Air Pressure: | 8 kg/cm |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Pneumatic Air Cylinder - Double Acting – 32mm Bore x 400mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 32mm and the stroke is 400mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder - Double Acting – 32mm Bore x 600mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 32mm and the stroke is 600mm. It offers an adjustable buffer and is made from the...
PVC Flexible Duct – 405mm (Diameter) * 7.62M (Length) The 405 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
Pneumatic Air Cylinder – Double Acting – 100mm Bore x 300mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 100mm and the stroke is 300mm. Like all of Deelat’s types of cylinders, it is made...
Pneumatic Air Cylinder – Double Acting – 50mm Bore x 700mm Stroke – Pull Rod Type – DNC This standard double action DNC air piston is a pull rod type. The bore is 50mm and the stroke is 700mm. Like all of Deelat’s types of cylinders, it is made...
Pneumatic Air Cylinder – Double Acting – 63mm Bore x 350mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 63mm and the stroke is 350mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 32mm Bore x 800mm Stroke – Pull Rod Type – DNC This standard double action DNC air piston is a pull rod type. The bore is 32mm and the stroke is 800mm. Like all of Deelat’s types of cylinders, it is made...
Pneumatic Air Cylinder – Double Acting – 32mm Bore x 300mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 32mm and the stroke is 300mm. Like all of Deelat’s types of cylinders, it is made...
Pneumatic Air Cylinder – Double Acting – 50mm Bore x 175mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 50mm and the stroke is 175mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 160mm Bore x 900mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 160mm and the stroke is 900mm. Like all of Deelat’s types of cylinders, it is made...
PVC Flexible Duct – 100mm (Diameter) * 7.62M (Length) The 100 mm in diameter PVC duct has a length of 7.62 M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
Pneumatic Air Cylinder – Double Acting – 25mm Bore x 150mm Stroke – Mini – MA This standard double action MA air piston is a mini type. The bore is 25mm and the stroke is 150mm. Like all of Deelat’s types of cylinders, it is made from the...
Does this Pneumatic Air cylinder come with a double action control function?
Will you provide single piece
Hello Ravi, thank you for your question. If you are asking if we would sell just 1pneumatic cylinder the answer is yes. There is no minimum order quantity when purchasing a pneumatic cylinder from Deelat Industrial. You can buy 1 or 100, however, the more cylinders you purchase the better pricing you will get.
Hi it the barrel for this cylinder available to purchase seperate or does it only come as a complete cylinder.
Hello Trevor, thank you for your question. If you purchase this Pneumatic Cylinder you will receive exactly what you see in the photo. We do not sell include anything other than what you see photographed and on the product video.
I am looking for just Pneumatic cylinder end caps. Can i get them without the whole pneumatic cylinder?
Hi Kiran, thank you for your question. Unfortunately we do not sell pneumatic cylinder end caps by themselves.
What is the diameter of the cylinder rod?
Hi, Tony. The diameter of the cylinder rod is M16x1.5.
