Pneumatic Air Cylinder
- Double Acting - 63mm Bore x 250mm Stroke - Pull Rod Type - DNC
General Description

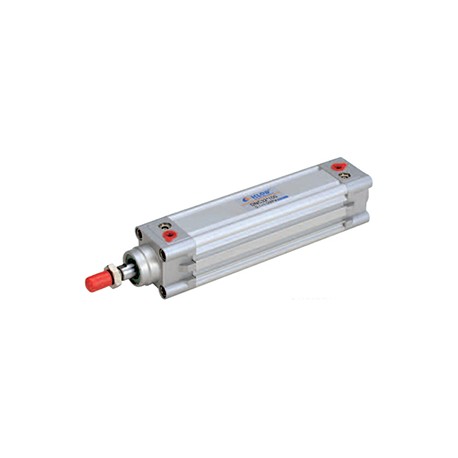

Pneumatic Air Cylinder – Double Acting – 63mm Bore x 250mm Stroke – Pull Rod Type – DNC
This standard double action DNC air piston is a pull rod type. The bore is 63mm and the stroke is 250mm. Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.
Function
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.
Applications
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.
Technical Details
| Certifications: | ISO |
|---|---|
| Size: | 19.4x15.8x15.8 cm |
| Motion Pattern: | Double Action |
| Working Medium: | Filtered Air |
| Min Operating Pressure: | 0.1 MPa |
| Max Operating Pressure: | 1.0 MPa |
| Compression Pressure: | 1.5Mpa |
| Ambient Temperature: | 5 - 60°C |
| Operating Speed Range: | 50- 500mm/s |
| Operating Life: | Not less than 4000Km |
| Buffer: | Air Buffer (Standard) |
| Port Size: | G3/8" |
| Stroke Size: | 250 mm |
| Bore size: | 63 mm |
| Material: | Aluminum Alloy |
| Buffer Stroke: | 22 |
Do you have a question about this product?
Pneumatic Air Cylinder - Double Acting - 100mm Bore x 250mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 100mm and the stroke is 250mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 80mm Bore x 250mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 80mm and the stroke is 250mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 40mm Bore x 125mm Stroke – Mini – MA This standard double action MA air piston is a mini type. The bore is 40mm and the stroke is 125mm. Like all of Deelat’s types of cylinders, it is made from the...
Pneumatic Air Cylinder – Double Acting – 200mm Bore x 800mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 200mm and the stroke is 800mm. Like all of Deelat’s types of cylinders, it is made...
Motorised Electric Ball Valve - 2-Way DC - 1", 2.5N.m, Stainless Steel, 12V - ON/OFF The motorised electric ball valve consists of a 2-Way 1” stainless steel valve, has a 2.5N.m operating torque and the actuator requires DC12V power. It also...
Pneumatic Air Cylinder – Double Acting – 160mm Bore x 900mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 160mm and the stroke is 900mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 160mm Bore x 250mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 160mm and the stroke is 250mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder - Double Acting - 125mm Bore x 250mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 125mm and the stroke is 250mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 200mm Bore x 250mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 200mm and the stroke is 250mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 200mm Bore x 125mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 200mm and the stroke is 125mm. It offers an adjustable buffer and is made from the...
Portable Ventilation Fan - Diameter 300 mm - Single Phase - 110V The vent fan has a diameter of 300 mm, is single phase, and the voltage is 110V. It has an air volume of 65 cubic meters/min, and its max RPM rating is 3300 RPMs. Function The...
Pneumatic Air Cylinder – Double Acting – 125mm Bore x 150mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 125mm and the stroke is 150mm. Like all of Deelat’s types of cylinders, it is made...
Does this Pneumatic Air cylinder come with a double action control function?
Will you provide single piece
Hello Ravi, thank you for your question. If you are asking if we would sell just 1pneumatic cylinder the answer is yes. There is no minimum order quantity when purchasing a pneumatic cylinder from Deelat Industrial. You can buy 1 or 100, however, the more cylinders you purchase the better pricing you will get.
Hi it the barrel for this cylinder available to purchase seperate or does it only come as a complete cylinder.
Hello Trevor, thank you for your question. If you purchase this Pneumatic Cylinder you will receive exactly what you see in the photo. We do not sell include anything other than what you see photographed and on the product video.
I am looking for just Pneumatic cylinder end caps. Can i get them without the whole pneumatic cylinder?
Hi Kiran, thank you for your question. Unfortunately we do not sell pneumatic cylinder end caps by themselves.
What is the diameter of the cylinder rod?
Hi, Tony. The diameter of the cylinder rod is M16x1.5.
