Pneumatic Air Cylinder
- Double Acting - 16mm Bore x 225mm Stroke - Mini - MA
General Description

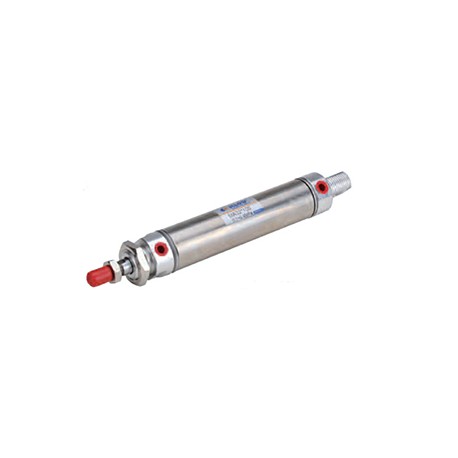

Pneumatic Air Cylinder – Double Acting – 16mm Bore x 225mm Stroke – Mini – MA
This standard double action MA air piston is a mini type. The bore is 16mm and the stroke is 225mm. Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.
Function
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.
Applications
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.
Technical Details
| Certifications: | ISO |
|---|---|
| Size: | 33.9x2.75x2.4 cm |
| Motion Pattern: | Double Acting |
| Working Medium: | Air |
| Operating Voltage Range: | 1.0-9.0 kg f/cm |
| Ensured Pressure Resistance: | 13.5kgf/cm |
| Operating temperature Range: | -5 - 70°C |
| Operating Speed Range: | 50- 800mm/s |
| Buffer Type: | Buffer Spacer |
| Port Size: | M5 x 0.8 |
| Stroke Size: | 225 mm |
| Bore size: | 16 mm |
| Material: | Stainless Steel |
| Max Air Pressure: | 8 kg/cm |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Pneumatic Air Cylinder - Double Acting - 100mm Bore x 175mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 100mm and the stroke is 175mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder - Double Acting – 32mm Bore x 450mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 32mm and the stroke is 450mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 40mm Bore x 700mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 40mm and the stroke is 700mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 25mm Bore x 75mm Stroke – Mini – MA This standard double action MA air piston is a mini type. The bore is 25mm and the stroke is 75mm. Like all of Deelat’s types of cylinders, it is made from the highest...
Pneumatic Air Cylinder – Double Acting – 40mm Bore x 50mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 40mm and the stroke is 50mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder - Double Acting – 32mm Bore x 700mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 32mm and the stroke is 700mm. It offers an adjustable buffer and is made from the...
Motorised Electric Ball Valve - 2-Way DC - 1", 2.5N.m, Stainless Steel, 12V - ON/OFF The motorised electric ball valve consists of a 2-Way 1” stainless steel valve, has a 2.5N.m operating torque and the actuator requires DC12V power. It also...
Pneumatic Air Cylinder – Double Acting – 63mm Bore x 450mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 63mm and the stroke is 450mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 40mm Bore x 300mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 40mm and the stroke is 300mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder - Double Acting - 125mm Bore x 350mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 125mm and the stroke is 350mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 80mm Bore x 900mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 80mm and the stroke is 900mm. Like all of Deelat’s types of cylinders, it is made...
Propane Forced Air Heater – 92 sq.m – 110 V The propane forced air heater is fueled by propane or LPG and has a heating area of 92 sq.m. The air flow is 500 sq.m/hr and the voltage is 110V. Function The flow heater connects via hose to a...
Does this Pneumatic Air cylinder come with a double action control function?
Will you provide single piece
Hello Ravi, thank you for your question. If you are asking if we would sell just 1pneumatic cylinder the answer is yes. There is no minimum order quantity when purchasing a pneumatic cylinder from Deelat Industrial. You can buy 1 or 100, however, the more cylinders you purchase the better pricing you will get.
Hi it the barrel for this cylinder available to purchase seperate or does it only come as a complete cylinder.
Hello Trevor, thank you for your question. If you purchase this Pneumatic Cylinder you will receive exactly what you see in the photo. We do not sell include anything other than what you see photographed and on the product video.
I am looking for just Pneumatic cylinder end caps. Can i get them without the whole pneumatic cylinder?
Hi Kiran, thank you for your question. Unfortunately we do not sell pneumatic cylinder end caps by themselves.
What is the diameter of the cylinder rod?
Hi, Tony. The diameter of the cylinder rod is M16x1.5.
