Pneumatic Air Cylinder
- Double Acting - 25mm Bore x 100mm Stroke - Mini - MA
General Description

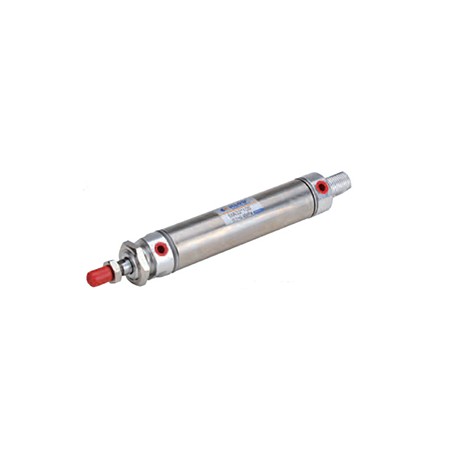

Pneumatic Air Cylinder – Double Acting – 25mm Bore x 100mm Stroke – Mini – MA
This standard double action MA air piston is a mini type. The bore is 25mm and the stroke is 100mm. Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.
Function
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.
Applications
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.
Technical Details
| Certifications: | ISO |
|---|---|
| Size: | 24.1x2.9x3.3 cm |
| Motion Pattern: | Double Acting |
| Working Medium: | Air |
| Operating Voltage Range: | 1.0-9.0 kg f/cm |
| Ensured Pressure Resistance: | 13.5kgf/cm |
| Operating temperature Range: | -5 - 70°C |
| Operating Speed Range: | 50- 800mm/s |
| Buffer Type: | Buffer Spacer |
| Port Size: | G1/8" |
| Stroke Size: | 100 mm |
| Bore size: | 25 mm |
| Material: | Stainless Steel |
| Max Air Pressure: | 8 kg/cm |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Pneumatic Air Cylinder - Double Acting – 32mm Bore x 300mm Stroke - Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 32mm and the stroke is 300mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 40mm Bore x 75mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 40mm and the stroke is 75mm. It offers an adjustable buffer and is made from the...
Motorised Electric Ball Valve - 2-Way DC - 1", 2.5N.m, Stainless Steel, 12V - ON/OFF The motorised electric ball valve consists of a 2-Way 1” stainless steel valve, has a 2.5N.m operating torque and the actuator requires DC12V power. It also...
Pneumatic Air Cylinder – Double Acting – 200mm Bore x 75mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 200mm and the stroke is 75mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 25mm Bore x 175mm Stroke – Mini – MA This standard double action MA air piston is a mini type. The bore is 25mm and the stroke is 175mm. Like all of Deelat’s types of cylinders, it is made from the...
Pneumatic Air Cylinder – Double Acting – 50mm Bore x 450mm Stroke – Pull Rod Type – DNC This standard double action DNC air piston is a pull rod type. The bore is 50mm and the stroke is 450mm. Like all of Deelat’s types of cylinders, it is made...
Pneumatic Air Cylinder – Double Acting – 63mm Bore x 400mm Stroke – Pull Rod Type – SI This standard double action SI air piston is a pull rod type. The bore is 63mm and the stroke is 400mm. Like all of Deelat’s types of cylinders, it is made...
PVC Flexible Duct – 405mm (Diameter) * 7.62M (Length) The 405 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
Pneumatic Air Cylinder – Double Acting – 32mm Bore x 175mm Stroke – Mini – MA This standard double action MA air piston is a mini type. The bore is 32mm and the stroke is 175mm. Like all of Deelat’s types of cylinders, it is made from the...
Pneumatic Air Cylinder – Double Acting – 50mm Bore x 600mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 50mm and the stroke is 600mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 40mm Bore x 25mm Stroke – Pull Rod Type – SC This standard double action SC air piston is a pull rod type. The bore is 40mm and the stroke is 25mm. It offers an adjustable buffer and is made from the...
Pneumatic Air Cylinder – Double Acting – 20mm Bore x 175mm Stroke – Mini – MA This standard double action MA air piston is a mini type. The bore is 20mm and the stroke is 175mm. Like all of Deelat’s types of cylinders, it is made from the...
Does this Pneumatic Air cylinder come with a double action control function?
Will you provide single piece
Hello Ravi, thank you for your question. If you are asking if we would sell just 1pneumatic cylinder the answer is yes. There is no minimum order quantity when purchasing a pneumatic cylinder from Deelat Industrial. You can buy 1 or 100, however, the more cylinders you purchase the better pricing you will get.
Hi it the barrel for this cylinder available to purchase seperate or does it only come as a complete cylinder.
Hello Trevor, thank you for your question. If you purchase this Pneumatic Cylinder you will receive exactly what you see in the photo. We do not sell include anything other than what you see photographed and on the product video.
I am looking for just Pneumatic cylinder end caps. Can i get them without the whole pneumatic cylinder?
Hi Kiran, thank you for your question. Unfortunately we do not sell pneumatic cylinder end caps by themselves.
What is the diameter of the cylinder rod?
Hi, Tony. The diameter of the cylinder rod is M16x1.5.
