Solenoid Valve
- Double - 5/2 way - Port:1/4"
General Description

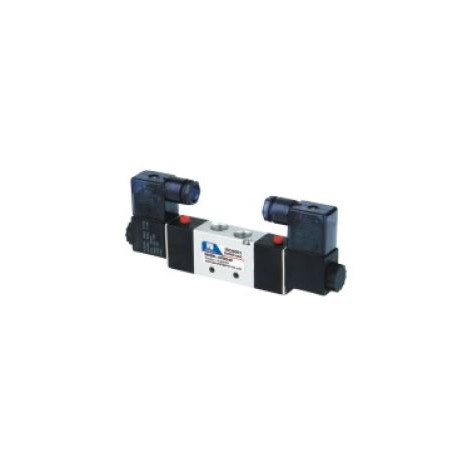

Solenoid Valve - Double - 5/2 way - Port:1/4"
The solenoid valve is a double valve, 5/2 way, with a 1/4" port. It has an internal hole that adopts special processing technology, which has little attrition friction, low start pressure, and long life service. It has several options for voltage and thread type.
Function
The solenoid valve is a control unit that allows and shuts off the flow of liquids. The actuator takes the form of an electromagnet and generates a magnetic field, which allows the valve to work. All manual devices are equipped on this solenoid valve to facilitate installation and debugging. There is no need to add oil for lubrication. It has a sensitive reaction and excellent tightness.
Application
A solenoid valve opens and closes to manipulate the flow of liquid or mixed media in a variety of applications. They can be used in dishwashers, cars, irrigation and much more. The double valve forms an integrated valve group with the base to save installation space. Double solenoid valves also have memory function.
Technical Details
| Valve Type: | 5 port 2 position |
|---|---|
| Pilot-oriented mode: | Internal pilot or external pilot |
| Port Size: | In/Out/Exhaust-1/4" |
| Orifice Size: | 25.0mm²(Cv=1.4) |
| Max. Frequency: | 4 cycle/sec |
| Operationg pressure: | 0.15-0.8MPa (21-114psi) |
| Proof pressure: | 1.2MPa (175psi) |
| Temperature: | -20-70°C |
| Body Material: | Aluminum Alloy |
| Lubrication: | Not required |
| Coil Protection: | IP65(DIN40050) |
| Activating time: | 0.05 sec or below |
| Brand: | Deelat Industrial |
