O Rings
- Viton - Dimensions 26.58x3.53 mm - Qty. 5
Product Video
General Description

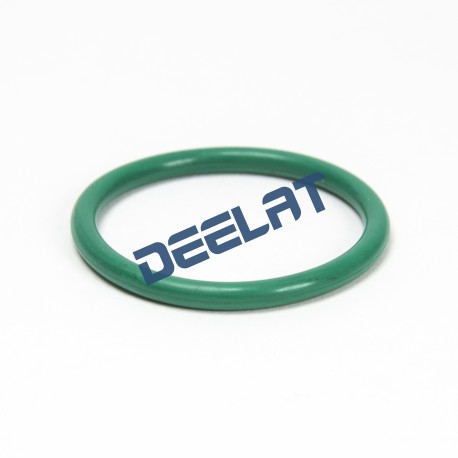

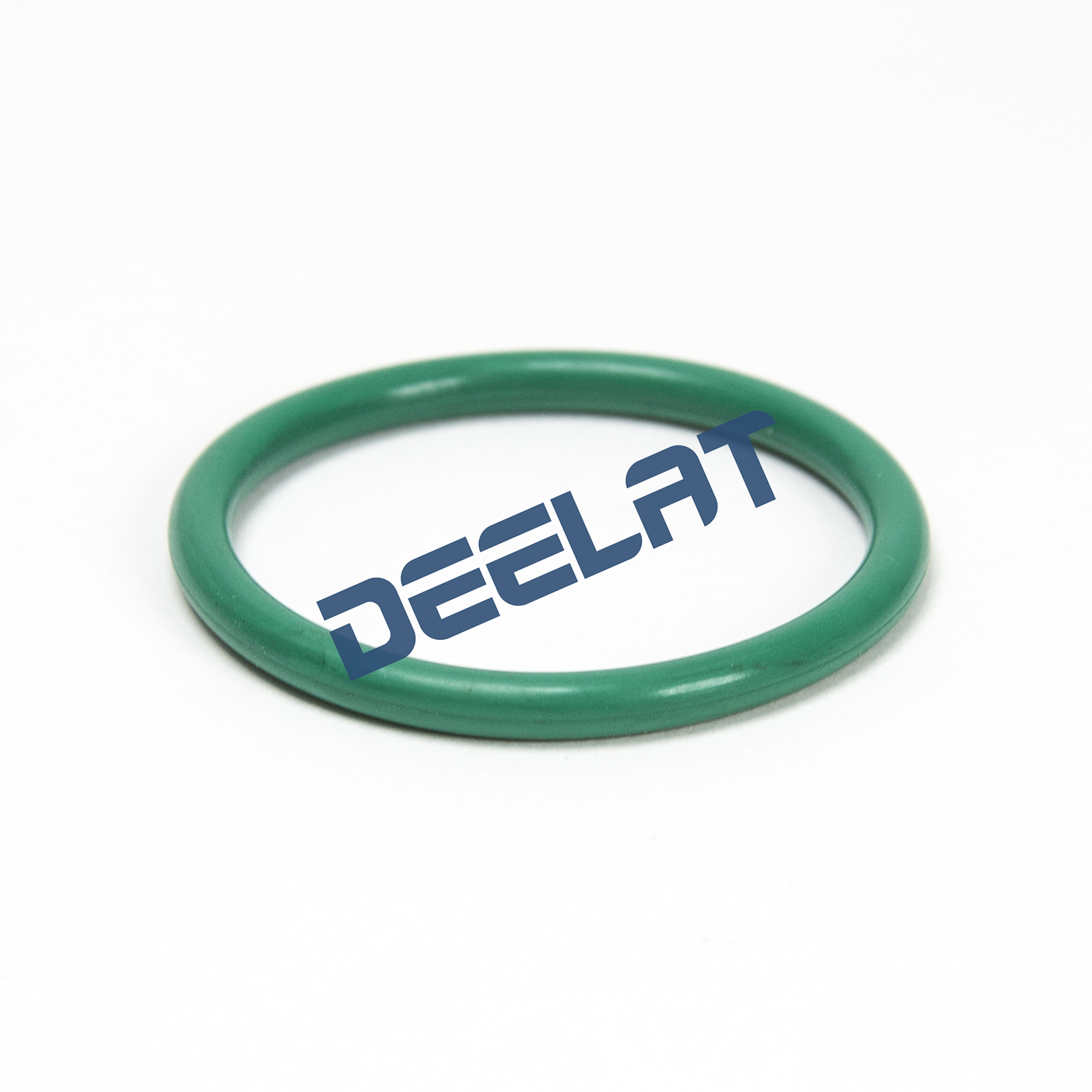

O Rings – Viton – Dimensions 26.58x3.53 mm – Qty. 5
This o ring material is viton (fluoro carbon rubber). Its dimensions are 26.58x3.53 mm, and five o rings are included. It is highly resistant to aging, ozone, weather, heat, water and solvent. It can stand temperatures of up to 300 degrees Celsius.
Function
The o ring is situated in a groove between two or more parts and is then compressed, creating a seal.
Applications
This o ring material is ideal for a number of different plumbing applications, such as use with engine oil, gear oil, machine oil, lubricating oil and more.
Technical Details
| Inner Diameter: | 26.58 mm |
|---|---|
| Cross Section (C/S): | 3.53 mm |
| Material: | Viton (Fluoro Carbon Rubber) |
| Resistant to heat , oil , medicine, solvent | |
| Not resistant to ketone, ester, mixture containing saltpeter | |
| Highest applicable temp: | 300C |
| Embrittlement Temp: | -10 ~ -50C |
| Temperature Range: | -25 -250C |
| Hardness Range: | 50-90 |
| Anti tension Strength (kg/cm): | 70-200 |
| Usual Application: | O ring , diaphragm, tube part for pump, seal for motocycle, diesel engine, semiconductor industry |
| Excellent use for: | Engine Oil, Gear Oil , Machine Oil, Shaft Lubricating oil , Freezing machine oil, Butter/ Grease , Lithium Oil , Phenyltrimethicone, Alcohol , Light Oil , Lamp- oil , Heavy oil , Gasoline, Hydrochloric acid , Sulfuric acid 30%, Nitric acid 10% , LPG, Coal Gas, Ozone, Freon 12 |
| Good use for: | Water , Non- freezing water ,Ethanol |
| Fair use for: | Hot water ozone, Light Oil , Lamp- Oil , Heavy Oil , Gasoline |
| Not recommend to use for: | Nitric acid 10% , Benzene, Trichloro ethylene, Ether, Ketone, Ethyl acetate |
