O Rings
- EPDM - Dimensions 66.04x5.34 mm - Qty. 5
General Description

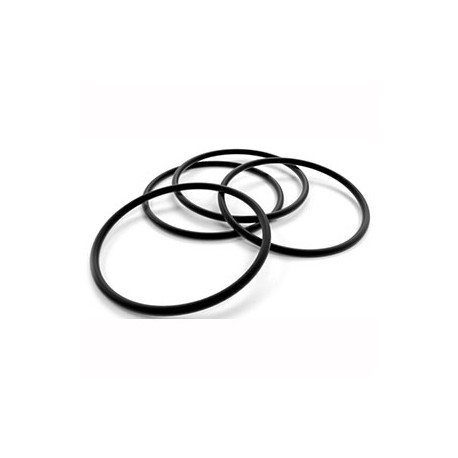

O Rings – EPDM – Dimensions 66.04x5.34 mm – Qty. 5
This o ring material is EPDM (ethylene propylene rubber). Its dimensions are 66.04x5.34 mm, and five o rings are included. It is highly resistant to aging, ozone, weather, abrasion, water and alcohol. It can stand temperatures of up to 150 degrees Celsius.
Function
The o ring is situated in a groove between two or more parts and is then compressed, creating a seal.
Applications
This o ring material is ideal for a number of different plumbing applications, such as use with engine oil, gear oil, machine oil, lubricating oil and more.
Technical Details
| Inner Diameter: | 66.04 mm |
|---|---|
| Cross Section (C/S): | 5.34 mm |
| Material: | EPDM (Ethylene Propylene Rubber) |
| Resistant to aging, ozone, weather, medicine, abrasion, water, alcohol, ketone | |
| Not applicable to food | |
| Highest Applicable Temp: | 150C |
| Embrittlement Temp: | -40 ~ -60C |
| Temperature Range: | -50-500C |
| Hardness Range: | 30-90 |
| Anti-Tension Strength (Kg/cm): | 50-200 |
| Usual Application: | Coat of electric wire, Window frame, Steam radiator |
| Excellent Use For: | Phenyltrimethicone, Water, Steam, Non-freezing water, Hydrochloric acid, Sulfuric Acid 30%, Caustic Acid 30%, Ethanol, Alcohol, Ketone, Ethyl Acetate, Ozone |
| Good Use For: | Nitric Acid 10%, Ether |
| Fair Use For: | Coal Gas, Freon 12, Freon 22 |
| Not Recommend to Use For: | Engine Oil, Gear Oil, Machine Oil, Shaft Lubricating Oil, Butter/ Grease, Lithium Oil, LPG |
Do you have a question about this product?
