General Description

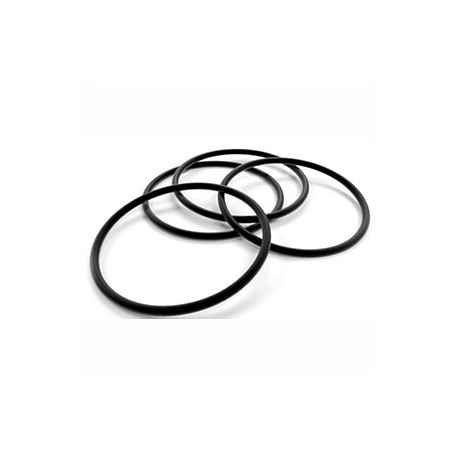

O Rings – EPDM – Dimensions 177.39x3.53 mm – Qty. 5


This o ring material is EPDM (ethylene propylene rubber). Its dimensions are 177.39x3.53 mm, and five o rings are included. It is highly resistant to aging, ozone, weather, abrasion, water and alcohol. It can stand temperatures of up to 150 degrees Celsius.

Function
O rings are situated in a groove between two or more parts and are then compressed, creating a seal.

Applications
This o ring material is ideal for a number of different plumbing applications, such as use with engine oil, gear oil, machine oil, lubricating oil and more.

Technical Details

Inner Diameter: 177.39 mm
Cross Section (C/S): 3.53 mm
Material: EPDM (Ethylene Propylene Rubber)
Resistant to aging, ozone, weather, medicine, abrasion, water, alcohol, ketone
Not applicable to food
Highest Applicable Temp: 150C
Embrittlement Temp: -40 ~ -60C
Temperature Range: -50-500C
Hardness Range: 30-90
Anti-Tension Strength (Kg/cm): 50-200
Usual Application: Coat of electric wire, Window frame, Steam radiator
Excellent Use For: Phenyltrimethicone, Water, Steam, Non-freezing water, Hydrochloric acid, Sulfuric Acid 30%, Caustic Acid 30%, Ethanol, Alcohol, Ketone, Ethyl Acetate, Ozone
Good Use For: Nitric Acid 10%, Ether
Fair Use For: Coal Gas, Freon 12, Freon 22
Not Recommend to Use For: Engine Oil, Gear Oil, Machine Oil, Shaft Lubricating Oil, Butter/ Grease, Lithium Oil, LPG
Show More Technical Specifications
