O Rings
- Buna-N - Dimensions 196.44x3.53 mm - Qty. 5
General Description

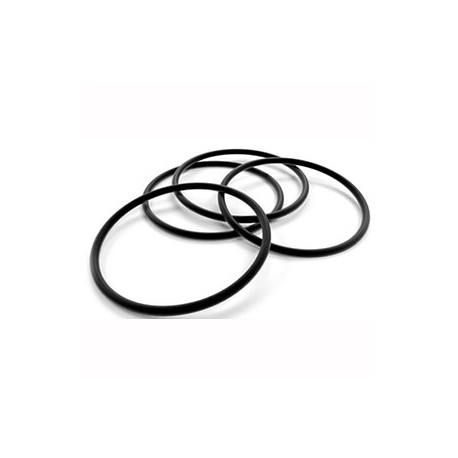

O Rings – Buna-N – Dimensions 196.44x3.53 mm – Qty. 5
This o ring material is Buna-N, or nitrite rubber. Its dimensions are 196.44x3.53 mm, and five o rings are included. It is resistant to oil, water abrasion and high pressure oil. It can stand temperatures of up to 130 degrees Celsius.
Function
The o ring is situated in a groove between two or more parts and is then compressed, creating a seal.
Applications
This o ring material is ideal for a number of different plumbing applications, such as use with engine oil, gear oil, machine oil, lubricating oil and more.
Technical Details
| Inner Diameter: | 196.44 mm |
|---|---|
| Cross Section (C/S): | 3.53 mm |
| Material: | NBR ( Nitrile Rubber) |
| Resistant to oil, water abrasion , high pressure oil | |
| Not resistant to extreme solvent | |
| Highest applicable temp: | 130 |
| Embrittlement Temp: | -10 - 20 |
| Temperature Range: | -25 - 100 |
| Hardness Range: | 15 -100 |
| Usual Application: | Seal parts for fuel oil tank , hydraulic oil, silicone grease, water |
| Excellent use for: | Engine Oil, Gear Oil , Machine Oil, Shaft Lubricating oil , Butter/ Grease , Lithium Oil , Phenyltrimethicone, Alcohol , Caustic acid 30 % |
| Good use for: | Freezing machine oil , Water , Hot Water , Steam, Non- freezing water , Sulfuric acid 30 % , Ethanol, LPG, Coal Gas , Freon 12 |
| Fair use for: | ozone, Light Oil , Lamp- Oil , Heavy Oil , Gasoline |
| Not recommend to use for: | Nitric acid 10% , Benzene, Trichloro ethylene, Ether, Ketone, Ethyl acetate |
| Brand: | Deelat Industrial |
