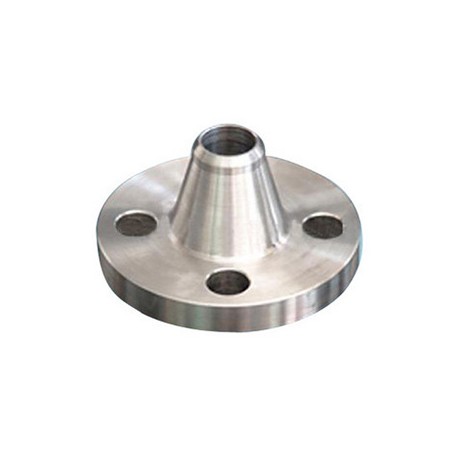

Class 150 F304/304L Stainless Steel Raised Face Weld Neck S/10 Bore Flange
- 12"
General Description
Technical Details
| Type: | Weld Neck |
|---|---|
| Size: | 12" |
| Class: | 150 |
| Weight: | 88 lb |
| Number of Bolts: | 12 |
| Overall Diameter: | 19 inch |
| Overall Thickness: | 4.5025 inch |
| Bolt Hole Diameter: | 1 inch |
| Bolt Circle Diameter: | 17 inch |
| Standard: | AMSE B16.5 |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Generally intended to be butt-welded to the pipe, this welding neck flange is the ideal solution for adding strength and resilience to pipework in hostile environments. The long tapered hub helps to prevent bending and ensures that product flow is...
