Blind Flange
- Nominal Pipe Size 6" - Class 900
General Description

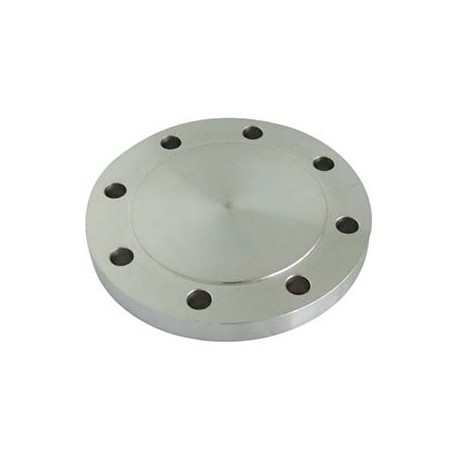

Blind Flange - Nominal Pipe Size 6" - Class 900
This solid flange's nominal pipe size is 6” with a total diameter of 15”. It has a pressure class rating of 900 and has 12 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a thickness of 2.19”.
Function
The blind flange is a flange without a bore and is used to seal off pipe ends. The flanges can be used in systems that are operational or in expansion systems that are not yet operational. They allow easy access to the line and can be sealed and re-opened.
Applications
This solid flange is used in pipeline applications where liquid or gas is transported from one location to another.
Technical Details
| Type: | Blind |
|---|---|
| Class: | 900 lb |
| Size: | Nominal Pipe Size 6" |
| Flange Diameter: | 15" |
| Number of Bolt Holes: | 12 |
| Bolt Hole Diameter: | 1.25" |
| Bolt Circle Diameter: | 12.5" |
| Flange Thickness: | 2.19" |
| Standard: | AMSE B 16.5 |
| Weight: | 47.5 kg |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Blind Flange – Nominal Pipe Size 3” – Class 300 - Stainless Steel - F316/316L This solid flange's nominal pipe size is 3” with a total diameter of 8.25”. It has a pressure class rating of 300 and has 8 bolt holes. It is made of AMSE B 16.5...
Blind Flange - Nominal Pipe Size 34" - Class 600 This solid flange's nominal pipe size is 34” with a total diameter of 49”. It has a pressure class rating of 600 and has 28 bolt holes. It is made of AMSE B 16.47 A (steel) and comes in a...
PVC Flexible Duct – 405mm (Diameter) * 7.62M (Length) The 405 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
Blind Flange - Nominal Pipe Size 1" - Class 150 - Raised Face - Stainless Steel - F316/316L This solid flange's nominal pipe size is 1” with a total diameter of 4.25”. It has a pressure class rating of 150 and has 4 bolt holes. It is made of...
Blind Flange - Nominal Pipe Size 2-1/2" - Class 900 This solid flange's nominal pipe size is 2-1/2” with a total diameter of 9.63”. It has a pressure class rating of 900 and has 8 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a...
Blind Flange - Nominal Pipe Size 2-1/2" - Class 150 - Raised Face - Stainless Steel - F316/316L This solid flange's nominal pipe size is 2-1/2” with a total diameter of 7”. It has a pressure class rating of 150 and has 4 bolt holes. It is made...
Blind Flange - Nominal Pipe Size 26" - Class 900 This solid flange's nominal pipe size is 26” with a total diameter of 42.75”. It has a pressure class rating of 900 and has 20 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a...
Generally intended to be butt-welded to the pipe, this welding neck flange is the ideal solution for adding strength and resilience to pipework in hostile environments. The long tapered hub helps to prevent bending and ensures that product flow is...
Propane Forced Air Heater – 92 sq.m – 110 V The propane forced air heater is fueled by propane or LPG and has a heating area of 92 sq.m. The air flow is 500 sq.m/hr and the voltage is 110V. Function The flow heater connects via hose to a...
Blind Flange - Nominal Pipe Size 14" - Class 900 This solid flange's nominal pipe size is 14” with a total diameter of 25.25”. It has a pressure class rating of 900 and has 20 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a...
Blind Flange - Nominal Pipe Size 6" - Class 900 This solid flange's nominal pipe size is 6” with a total diameter of 15”. It has a pressure class rating of 900 and has 12 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a thickness of...
Blind Flange - Nominal Pipe Size 2" - Class 300 This solid flange's nominal pipe size is 2” with a total diameter of 6.5”. It has a pressure class rating of 300 and has 8 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a thickness of...
Would MTR's be supplied with this item?
Hello Charles, thank you for your question. MTR's will not be supplied with the flange. All you will receive if you purchase SKU# D1146404 is the blind flange. If you have any other questions or concerns please do not hesitate to contact us.
Can I purchase a gasket along with this item?
Thanks for your interest in our products, Darwin. Unfortunately, this product is no longer available. However, we have a few other blind flanges to choose from. If you have a specific application that requires a blind flange with a gasket, call our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance in selecting the right Deelat product.
